The Brick Panels PUR-LESS and NETZ
system permits clean, uncomplicated
and inexpensive brick facing of
walls on old, prefabricated and new
houses, indoor and outdoor. The bricks of both systems are
natural high quality, hard-baked
brick facing tiles made
from specially selected clays and
fired up to 1200C°. As a result,
they are extremely dense with a
water absorption rate of only 2 to 6
percent (%).
All facing bricks are
frost-resistant, dimensionally
stable and colour fast.
Extensive work on the foundations is
unnecessary and is not usually
necessary to extend the soffits
eaves (roof projections).
There is a host of individual design
possibilities available with special
elements co-coordinated for the
specific building available for
corner areas, lintels and etc.
Brickwork without
foundations
1.
PUR-LESS system.
Thickness 14 up to
20
mm
The panels are
pre-joined (pointing)
between the brick-tile
with quartz sand (not on
place where the panels
come together).
NF, DF, RF brick panels
are in Stretcher bond.
WDF panels are in
Flemish bond.
Without requiring any
preliminary work, the
Brick Panels PUR-LESS
elements are secured
directly to the wall
using special brick
facing tile adhesive FK
1002 and then being
joined.
|
Dimension PUR-LESS
panels: (WxH)
|
|
Panel
bond
|
bricks-tile thickness
|
panel dimension
|
|
NF
|
14 mm
|
100.2 x 48.7 cm (0.49m2)
|
|
WDF
|
20 mm
|
90.2 x 48.5 cm
(0.44m2)
|
|
DF
|
17 mm
|
100.2 x 50.2 cm (0.50m2)
|
|
RF
|
17 mm
|
100.2 x 48.5 cm (0.49m2)
|
2.

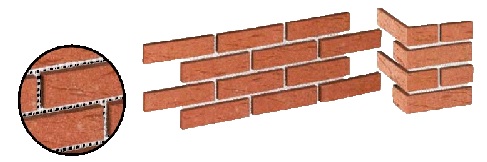

NETZ system.
Thickness 9 and 14mm
The brick tiles glue on a
net (mesh) no joined
(pointing) between the
brick-tile.
Without requiring any
preliminary work, the Brick
Panels NETZ elements are
secured directly to the wall
using special brick facing
tile adhesive FK 1002 and
immediately after fitting
the joints, smooth out with
a jointer.
|
Dimension NETZ
panels: (WxH) |
| Panel
bond |
bricks-tile thickness |
panel dimension |
|
NF |
14 mm |
101 x 33.3 cm (0.34m2)
|
|
WDF |
- |
Not available |
|
DF |
- |
Not available |
|
RF |
- |
Not available |

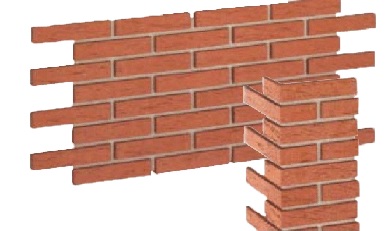

Example of the Brick Panels without insulation
Weight of each panel without insulation is about 15 kg
|
 |
House corner panel model HE |
24.5x24.5x49cm |
|
 |
RIGHT/ LEFT Window/ Door corner panel
model FE |
24.5x11.5x49cm |
|
 |
Above Window / Door corner
panel model ST |
24.5x11.5x49cm |
